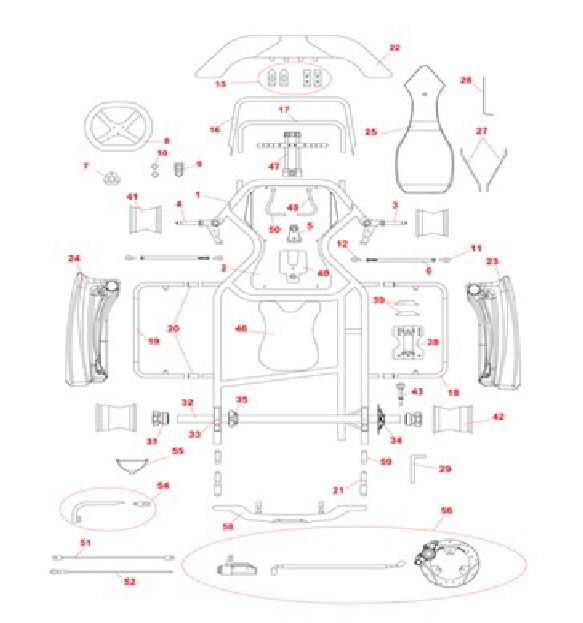

Wheelbase 1010 Axle 30

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59


SPY1010SC-10
INT0991-07
ST058DX-05
ST058SX-05
ST016-05
INT0984-07
ST052TG-08
VLSPEEDY-10
ST079RS-05
ST001TG-08
ST110DX-05
ST110SX-05
ST046-05
ST051-05
AR019-05
AR020-05
AR470-05
AR797DX-09
AR797SX-09
INT0662-06
AR026TG-08
AR794NR-09
AR796NRDX-09
AR796NRSX-09
AR795NR-09
INT1090-08
AR494-05
INT1046-08
AR086-05
AR085-05
INT1158L65-09
INT0988-07
GC023TG-08
INT1157-09
INT1085-08
CU002-05
CH002-05
PM077-07
PM031-05
AR732-09
CE115AL-10
CE116AL-10
AR449-05
INT1178-10
AR082-05
AR741-09
INT1174-10
INT0985-07
AR087-05
AR090-05
FR202-05
AR654-06
AR093-05
AR232-10
AR181-05
INT1087-08
FR097-05
AR775NR-09
AR821-10


SPEEDY FRAME WHEEL BASE 1010
MAKY/CHICCO FLOOR PLATE
RIGHT SPINDLE Ø17 10,5° WITH BEARING - SHORT SERIES
LEFT SPINDLE Ø17 10,5° WITH BEARING - SHORT SERIES
MINIKART/BABYKART STEERING COLUMN L420mm - CHROMIUM PLATED
MAKY/CHICCO  TIE ROD L230mm TITAN-GOLD
STEERING WHEEL HUB KF 3HOLE - AL - ANODIZ. TITANIUM
STEERING WHEEL Ø300mm - 4 SPOKES MOD. SPEEDY
STEERING COLUMN SUPPORT - NYLON - WITH 2 HOLES- RED
STEERING LOCKING COLUMN BUSH - TITAN-GOLD
M8 RIGHT STEEL MALE BALL-JOINT
M8 LEFT STEEL MALE BALL-JOINT
STEERING COLUMN UNIBALL PB8
SNAP RING Ø22mm FOR STEERING COLUMN UNI 3654-7437 DIN 472L
FRONT FAIRING FASTENING KIT
HIGH FRONT BUMPER  MINIKART CHROMED PLATED
MINIKART FRONT LOW BUMPER FIK05 CHROMIUM PLATED
RIGHT SIDE BODYWORK SUPPORT MOD. MK14
LEFT SIDE BODYWORK SUPPORT MOD. MK14
TEFLON SIDE BUMPER WASHER FASTENING
REAR BUMPER SUPPORT Ø28mm-ADJUSTABLE PIN - ANOD. TITAN GOLD
FRONT SPOILER MK14 - BLACK
RIGHT SIDE BODYWORK MOD. MK14 - BLACK
LEFT SIDE BODYWORK MOD. MK14 - BLACK
NUMBER PLATEHOLDER MOD. MK14 - BLACK
MAKY/CHICCO BODY WORKS FASTENING SCREWS KIT
MINIKART UPPER FRONT NOSE CONE NOSE SUPPORT -CHROM.PLATED
LOWER NUMBER HOLDER PLATE SUPPORT - SE MOD.
CHAIN GUARD SUPPORT - CHROMIUM PLATED
CHAIN GUARD FOR ENGINE 60CC. - KZ - RENTAL
REAR HUB ALLUMINIUM Ø30X65mm INTECH
HOLED AXLE Ø30X5X960mm - CH. 6mm MK2
MAKY/CHICCO BEARING BUSH Ø30mm AL - TITAN-GOLD
SPROKET SUPPORT Ø30mm INTECH'09 TITAN-GOLD
MAKY/CHICCO DISK SUPPORT Ø30mm AL- TITANIO
BEARING FOR AXLE Ø30mm
KEY 6X6X60mm
ENGINE MOUNT Ø28X92mm AL INTECH'09
UNIVERSAL BRACKET Ø28/30/32X92mm AL
KG - "ANTISHAKING" TANK MINIKART 2009
FRONT WHELL RIM - SPOKED - H 115mm - AL - WITH HUB AND BEARING
REAR WHELL RIM - SPOKED - H 145mm - AL
CHAIN STRETCHER SUPPORT SCREW
SIDE POD STICKERS KIT MK14 - MAORI
RECOVERY TANK
SEAT - FIBERGLASS TRASPARENT MOD.FA4- MINIKART
ADJUSTABLE FOOTREST SYSTEM SPEEDY/MINIKART
INTREPID STICJERS FOR MAKY/CHICCO FLOOR PLATE
MINI /CHICCO ACCELERATOR PEDAL - CHROMIUM PLATED
MINI/CHICCO BRAKE PEDAL - CHROMIUM PLATED
M6X270 BRAKE PUMP TIE ROD -CHROMIUM PLATED
SAFETY CABLE FOR KZ ( COMPOSED BY AR228: 1PC - AR487: 1PC)
PEDAL SPRING - GALVANIZED
SILENCER SUPPORT MOD. MINIKART/BABYKART
COMPLETE SILENCER HOLDER
BRAKE SYSTEM R3 MOD. MINIKART/BABYKART CSAI 14/CH/14
BRAKE PIPE FIXING BELT - Ø8mm
REAR SPOILER MOD.TRIS - BLACK COLOR
ALUMINIUM EXTENSION FOR REAR BUMPER (SPEEDY CHASSIS MOD. 1010)
